A Simple Explanation: What is 3D Printed Lattice Structures

In the transformative world of 3D printing, it's the details that make all the difference. A surprising structure has been discovered by 3D printing enthusiasts and experts alike in their never-ending search for stronger but lighter parts and flexible but sturdy designs: the simple lattice structure. Lattice structures are beautiful because they are a delicate balance between shape and force, flexibility and rigidity, strength and weight.

What are lattice structures?

A particular kind of geometric or organizational arrangement of one or many particles within a crystalline substance is called a lattice structure. It is a structure made up of unit cells, which are repeating, organized units. Lattice points, which hold one or more atoms or molecules, in the corners and sometimes in other locations, characterize each unit cell.

Numerous solid materials, such as metals, salts, ceramics, and semiconductors, have lattice structures. The lattice structures of these materials have a major role in determining their many properties, including as strength, optical qualities, and thermal and electrical conductivity.

A Simple Explanation: What is 3D Printed Lattice Structures

Why use lattice structures in additive manufacturing?

For additive manufacturing to produce lightweight, effective, and durable goods, lattice structures are essential. These designs enable more strategic use of resources to produce goods that actually take use of material features. The potential uses of lattice structures will grow along with our comprehension and utilization of additive manufacturing. Using lattice structures in additive manufacturing has several important benefits.

Light Weight

The ability to reduce weight significantly without sacrificing strength is one of the main advantages of lattice constructions. Weight is an important factor in industries such as aircraft, automotive, and medical implants, and lattices make it possible to produce lightweight components with structural integrity.

Customizable Mechanical Properties

Parts with custom material properties can be designed using lattices. Crucial properties including stiffness, strength, and density can be controlled by varying the lattice topology or unit cell diameters. Comparing this characteristic to conventional manufacturing techniques gives designers a great deal more creative freedom.

A Simple Explanation: What is 3D Printed Lattice Structures

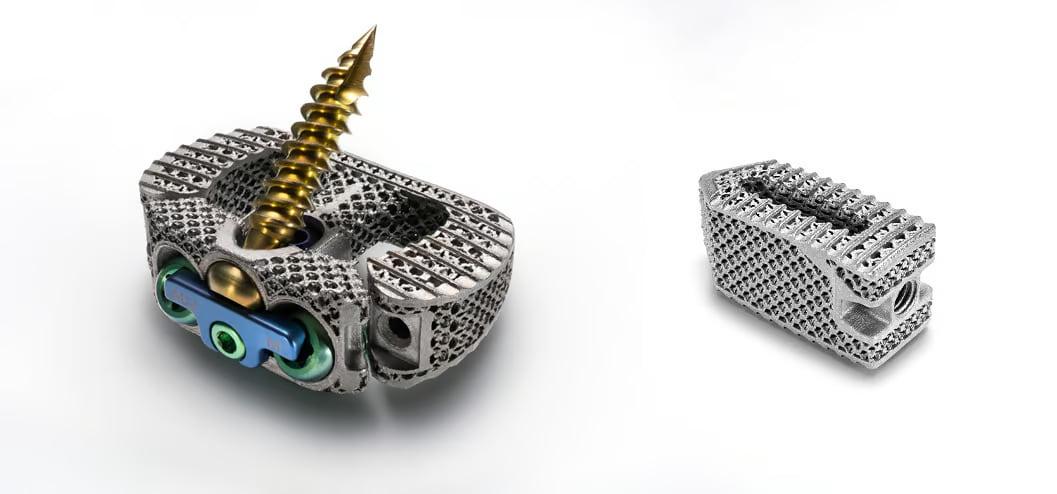

NanoHive Medical 3d printed orthopedic implants use lattice structure

Enhanced Functional Performance

Part performance can also be improved via lattice architectures. For instance, they can greatly increase heat resistance and energy absorption capacities, which are qualities that are especially useful in the automotive and aerospace industries. Furthermore, bone incorporation in orthopedic implants may be facilitated by the porous nature of lattice structures.

Improved Resource Efficiency

Lattice structures complement additive manufacturing's "print-what-you-need" approach effectively because they often use less material than solid structures. This method saves a great deal of money and material, particularly when costly materials like titanium or other rare metals are utilized.

Maximizing Capabilities of AM

The fabrication of complex lattice structures wouldn't be possible using traditional manufacturing techniques but is achievable with additive manufacturing. Thus, lattice structures demonstrate and exploit the design freedom that AM offers, enabling components and systems that are not only lighter and more efficient but also impressively intricate.

Types of lattice structures

Lattice structures are frequently employed in additive manufacturing, also referred to as 3D printing, to produce advantageous qualities like energy absorption, high stiffness, low weight, effective mechanical and thermal properties, and vascularization. Lattice structures come in a variety of forms, which are frequently grouped according to their general geometry. These consist of:

Cubic Lattice Structures

Composed of square pieces that stack to create a cube, these lattice structures are the most basic type. A range of designs, including Simple Cubic (SC), Body-Centered Cubic (BCC), and Face-Centered Cubic (FCC), are included in this category.

Structures using Hexagonal Lattices

Because of its excellent strength to weight ratio, hexagonal lattices are very frequently used. They have a structure resembling a honeycomb and are frequently utilized in industries like aerospace that demand high strength and lightweight materials.

Diamond Lattice Structures

These lattices, so called because they resemble the crystalline structure of diamonds, have extremely high structural efficiency. They are distinguished by a high degree of isotropy provided by a repeating pattern of struts and nodes.

Octet Lattice Structures

The unit cube and octahedral cell form are used to generate octet structures. Because of its exceptional structural strength and weight ratio characteristics, it is a well-liked and effective pattern.

Random Lattice Structures

These lattices are created randomly and lack a rigid geometric structure. Random lattices can be used to imitate organic, non-uniform structures or to optimize particular features.

Custom or Complex Lattice Structures

Designers are able to produce intricate or unique lattices to fulfill certain structural or functional needs thanks to sophisticated software and 3D printing technology. These can include modifications to common lattice geometries or completely new designs.

Depending on the requirements of the application, a lattice structure type can be selected. Each form has benefits and drawbacks. For instance, whereas a hexagonal lattice may be employed in applications where minimal material consumption is essential, a diamond lattice offers superior structural stability and rigidity. In additive manufacturing, the optimization of lattice structures is a major study topic that propels improvements in material science and structural engineering as well as personalization.

Industrial applications using 3D printed lattice structures

Lattice structures are made up of several three-dimensional nodes that overlap and repeat; they are typically shaped like rectangles or trapezoids. High strength to weight ratios, more design flexibility, and improved material efficiency are just a few of their many notable benefits. Technology related to 3D printing is essential to producing these intricate parts. When it comes to producing lattice structures, 3D printing——specifically, Selective Laser Melting (SLM)——becomes revolutionary. Let's examine some industrial uses for 3D printed lattice structures, along with a case study for each.

1. Aerospace Industry

In the aerospace sector, weight is a significant consideration. By incorporating 3D printed lattice structures within aircraft components, manufacturers can increase strength while reducing weight.

Case Study: Boeing's 3D Printed Titanium Lattice Structures

Boeing utilized 3D printing technology to create complex lattice configurations within the wing structure of its aircraft. The weight reduction in these crucial components led to a measurable improvement in fuel efficiency and substantial cost savings.

2. Construction Industry

In construction, lattice structures can be used to create lightweight yet durable materials that can be easily tailored to design requirements.

Case Study: The Eiffel Tower's Renovation

During the renovation of the Eiffel Tower's visitor platform, 3D printed lattice structure components were used to match the original design yet offer a much lighter and stronger solution, contributing to the sustainability and longevity of this iconic structure.

3. Automotive Industry

The automotive industry uses lattice structures in designing lightweight and durable components for both internal structures and bodyworks, contributing to improved fuel efficiency and safety.

Case Study: Lamborghini's Lattice Brake Calipers

Lamborghini utilized 3D printed titanium lattice structures to produce the world's first 3D printed brake caliper. The design reduced the component's weight by 40% yet increased its overall resilience and heat dissipation, crucial factors in a performance vehicle.

4. Biomedical Industry

In biomedical applications, lattice structures are used to create implants with characteristics closely resembling the host bone or tissue, promoting the body's natural healing process.

Case Study: Mayo Clinic's Patient-Specific Implants

The Mayo Clinic used 3D printed lattice structures to produce patient-specific implants for a facial reconstruction procedure. The complex design and biomimicry offered by these implants encouraged successful bone growth and ensured excellent implant stability and aesthetics.

5. Energy Industry

The energy sector utilizes lattice structures in parts such as heat exchangers where high surface area and good heat transfer characteristics are crucial.

Case Study: General Electric's Advanced Heat Exchangers

General Electric implemented 3D printed metallic lattice structures into the design of advanced heat exchangers. The new construction approach allowed a smaller, lighter design with improved heat transfer efficiency that ultimately resulted in enhanced performance and cost efficiency.

These case studies underline the transformative potential of 3D printing and lattice structure technology across various industries -- from aerospace to energy. Undeniably, 3D printed lattice structures are setting new standards for innovation in design, productivity, and functionality.

Conclusion

In light of our exploration, it's unambiguous that 3D printed lattice structures hold profound potential for revolutionizing various sectors including aerospace, medical, and architectural industries. The flexibility, customization ability, and weight efficiency they offer surpass what we previously deemed as limits in traditional manufacturing methods. In essence, they embody the power of innovation made possible by advancements in 3D printing technology. As we strive for sustainability and optimal resource usage, these intricate matrices stand as a profound testament to our ability to push the boundaries of design and engineering. Intriguing challenges await us as we continue to unlock their full potential and adeptly mitigating possible drawbacks. However, it's no doubt that 3D printed lattice structures signify a significant stride toward the future of manufacturing and a more sustainable world. In the end, it's an awe-inspiring union of technology, creativity, and science, unfolding a new design language where strength, efficiency, and intricate beauty coexist brilliantly.
